Moddern Castle Releases ‘Delta Island’ Switchless Overclocking Kit for Nintendo 64
Moddern Castle has released the Delta Island Overclocking Kit for the N64. The board allows users to cycle CPU speeds (up to 3.0x) using the Reset button, helping to reduce lag in supported games without cutting the console shell.
The new modification board offers variable CPU speeds to mitigate performance dips in legacy software, controllable via the console’s reset button.

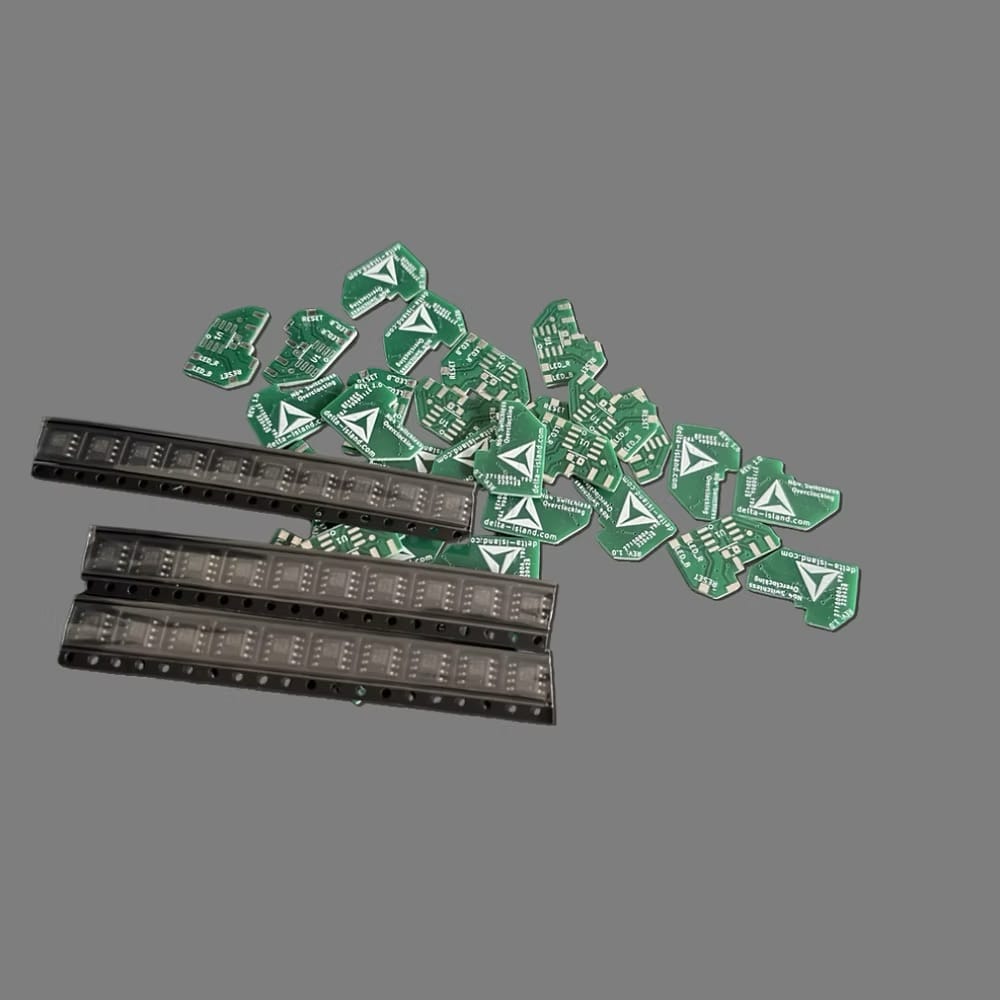

Modding retailer Moddern Castle has listed a new hardware modification for the Nintendo 64, titled the Delta Island N64 Switchless Overclock. The kit is designed to increase the operating frequency of the console's NEC VR4300 CPU, a technique often employed to smooth out frame-rate inconsistencies in demanding titles such as GoldenEye 007 and Perfect Dark.
Switchless Implementation
Unlike traditional overclocking modifications, which frequently require users to drill holes in the console shell to mount physical toggle switches, the Delta Island kit utilises a "switchless" design. The installation sits entirely within the chassis, detecting inputs from the console's existing Reset button to cycle through performance profiles.

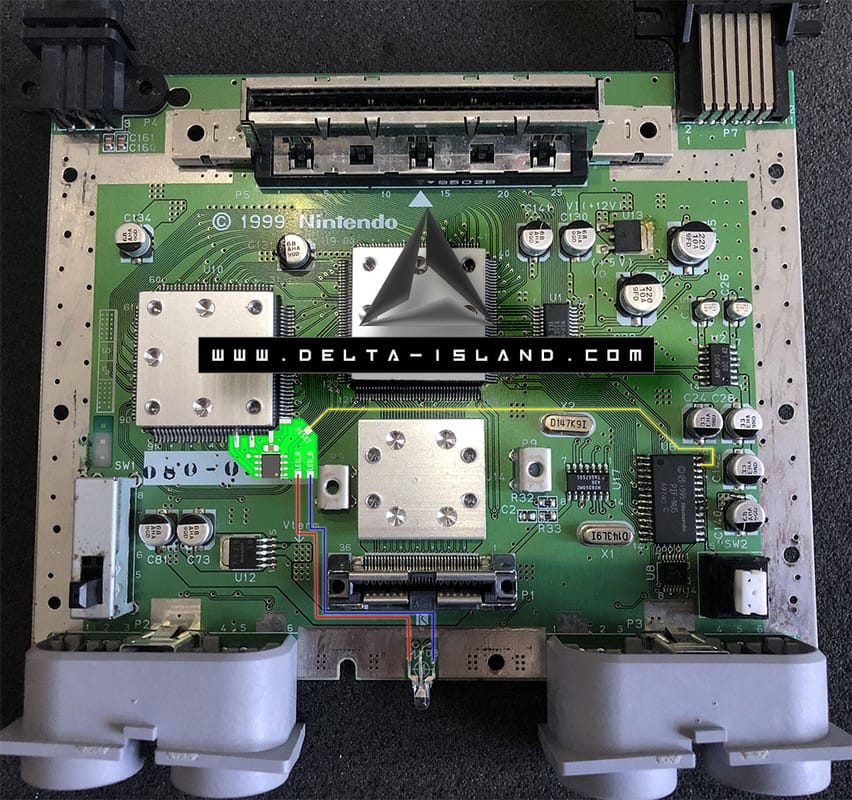

Credit: Delta Island / Rider
According to the product documentation highlighted by RetroRGB, the board supports four distinct speed multipliers:
- 1.0x (Stock): Standard 93.75 MHz operation.
- 1.5x: Approximately 140 MHz.
- 2.0x: Approximately 187 MHz.
- 3.0x: Experimental high-speed mode (stability varies significantly by silicon quality).

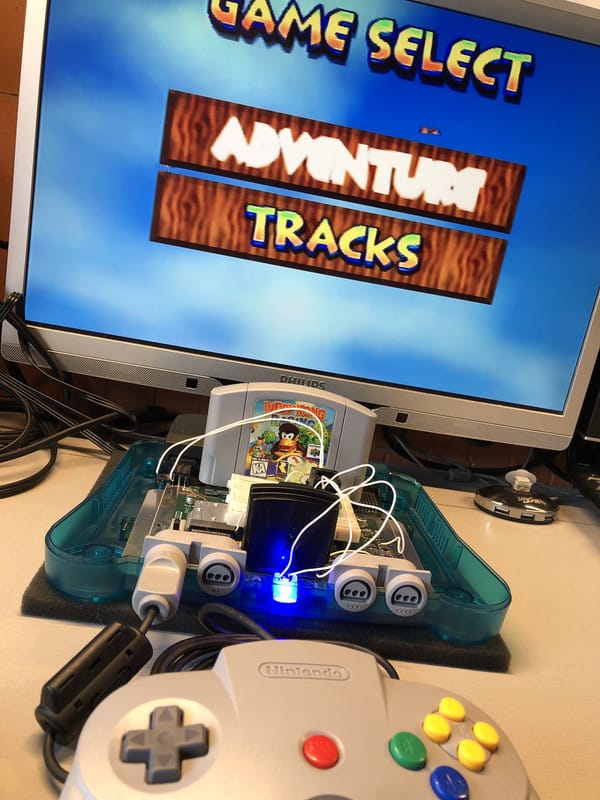

Visual feedback is provided via an onboard LED, which changes colour to indicate the active clock speed (e.g., Green for stock, Blue for 1.5x). This LED can be installed in the N64's power light diffuser or explicitly routed to a vent for visibility.
Performance and Compatibility
The primary utility of overclocking the Nintendo 64 lies in addressing the hardware limitations that plagued specific 3D titles in the late 1990s. Games that rely on uncapped frame rates often see stabilised performance at 1.5x or 2.0x speeds.
However, compatibility is not universal. As the N64 library contains titles where game logic is tied directly to the CPU clock, increasing the frequency can result in gameplay running at accelerated speeds or introducing audio de-synchronisation. The ability to revert to the 1.0x "Stock" profile via the Reset button allows users to retain full compatibility with the standard library without removing the hardware.
Installation Requirements

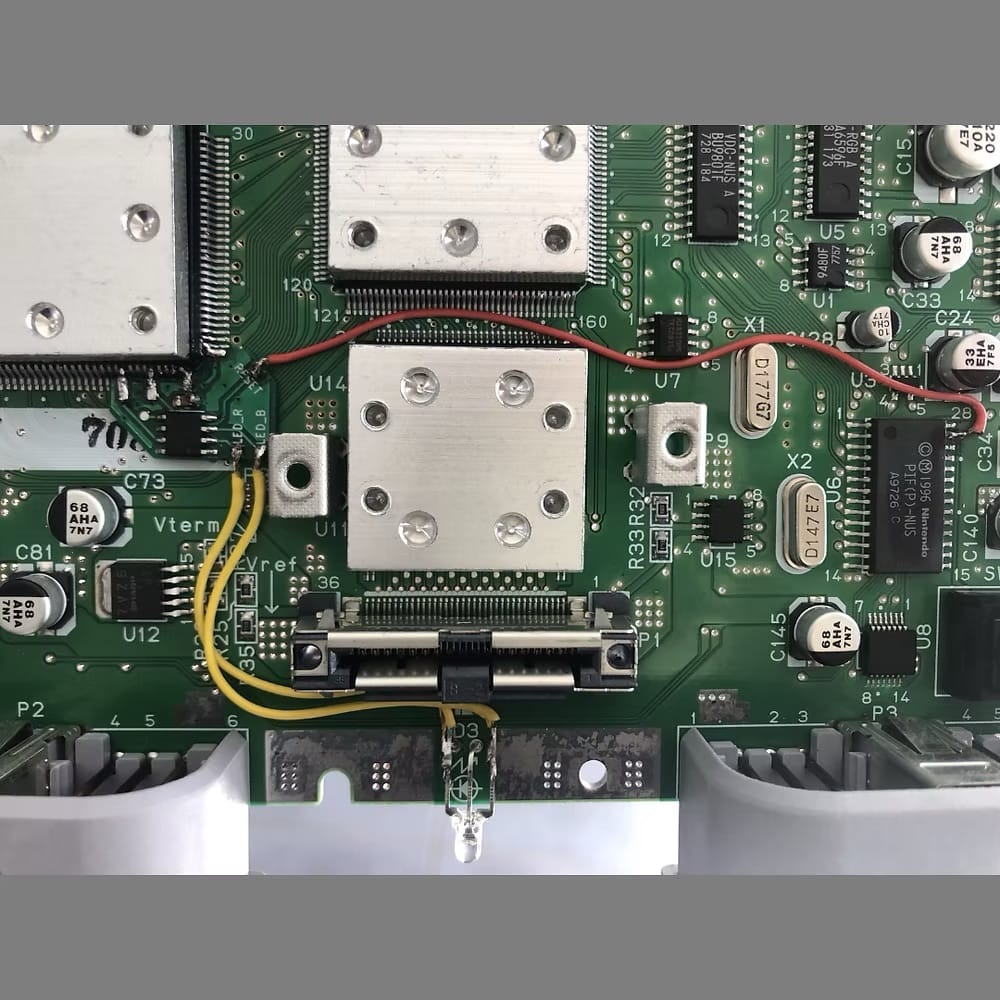

The installation process involves precise soldering work. Users must lift specific pins on the console’s CPU and bridge them to the Delta Island PCB. Consequently, this modification is categorised as intermediate-to-advanced, carrying a risk of damaging the mainboard if performed incorrectly.
The kit is currently available through the Moddern Castle storefront for $24.99.
